Wide Roll Cardboard Flexo Printing Machine

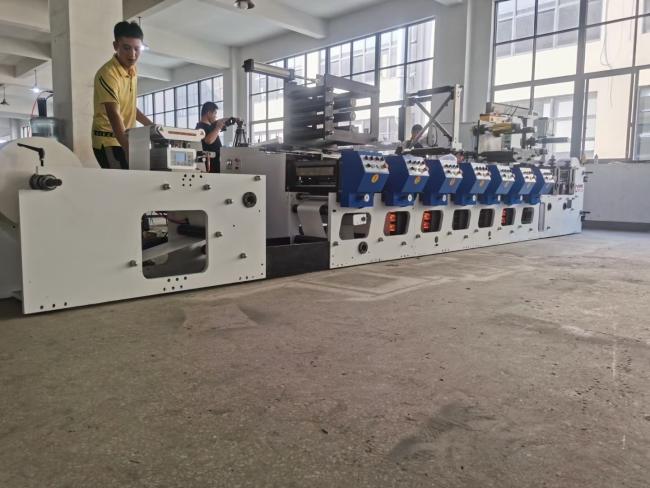

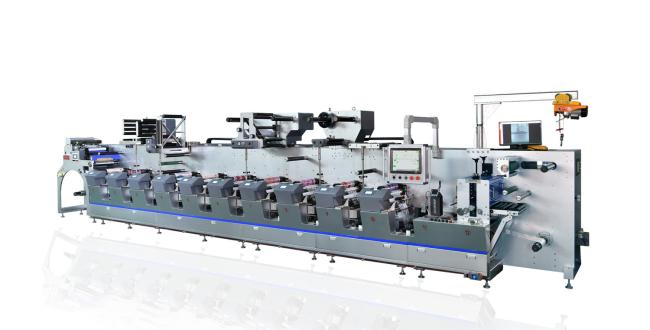

7 Color Wide Roll 600mm Lunch Paper Box Cardboard Flexo Printing Machine
Main features
(1)Printing girth 190.5-635mm, filling the blank of the stack type flexo printing machine, trademark printng machine can not print long length
(2)Magnetic powder brake controller for unwinding & rewinding
(3)Printing unit: 360°Plate-adjustment
(4)IR dryer for each printing unit.
(5)With web guide system
(6)Use water based in( UV ink) , which max. Speed can be 90m/min
(7)The ink rollers will be separated from the printing roller, and keep running, when machine stopped.
(8)Frequency converter for speed controlling
(9)Feed paper form roll material, print,wen guide, dry automatically by infrared ray and rewinding completed in one time.

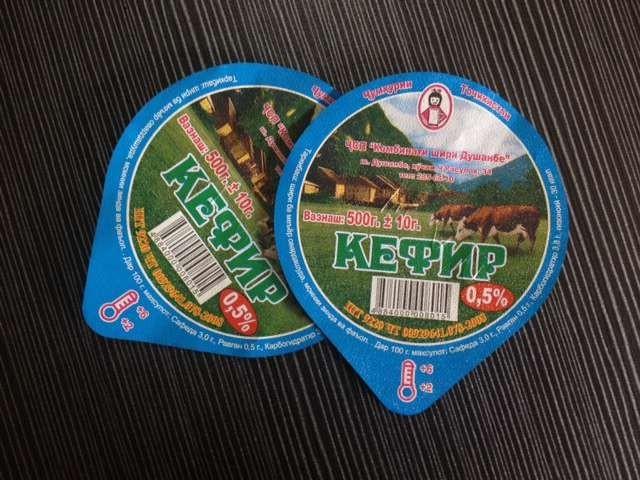

(10)It is an ideal machine for printing trade invoice and top-grade adhesive label.
Main technical specification:
| Model | RTIN600-7 |
| Printing speed | 80m/minute |
| Printing color number | 7 color |
| Max width of paper | 600mm |
| Max printing wide | 60mm |
| Max unwinding diameter | 1000mm |
| Max rewinding diameter | 1000mm |
| Printing length | 175-635mm |
| Precision of overprint | ±0.1mm |
| Overall dimension | 5.2(L)×1.6(W)×1.2(H)m |
| Weight | about 4200kg |
Optional parts:(can add as your request)
Printing unit number, up to 10 colors;turn bar device;Slitting setVideo monitorRotary die cutting setCold laminating
Material details:
| Printing material | paper,foil, PVC, |
| Printing ink | UV ink |
| Printing plate thcikness | 1.7mm |
