LLDPE Sewage Plant Geomembrane Fabric Transparent Geotextile Separation Fabric
HDPE Waterproof 0.5mm Geomembrane Fabric Transparent Geotechnical Engineering
Quick Detail:
- material: HDPE, LDPE, LLDPE, PP, PET
- length: 200m
- width: 8m
- thickness: 2.0mm
- function: seepage control, waterprool
- application: landfill, chemical industry, swimming pool
Production Description:
Anti-seepage HDPE geomembrana is made from 97.5% high density polyethylene (HDPE) and 2.5% Carbon black/anti-aging agent/anti-oxygen/UV absorbent/stabilizer and other accessory, which is widely used for fishpond, solid waste containment and water containment environment and mining environment. Anti-seepage HDPE geomembrana is made of best quality high density polyethylene (HDPE) with specially formulated and original polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which contributes to its excellent resistance to UV radiation and being suitable for different conditions.

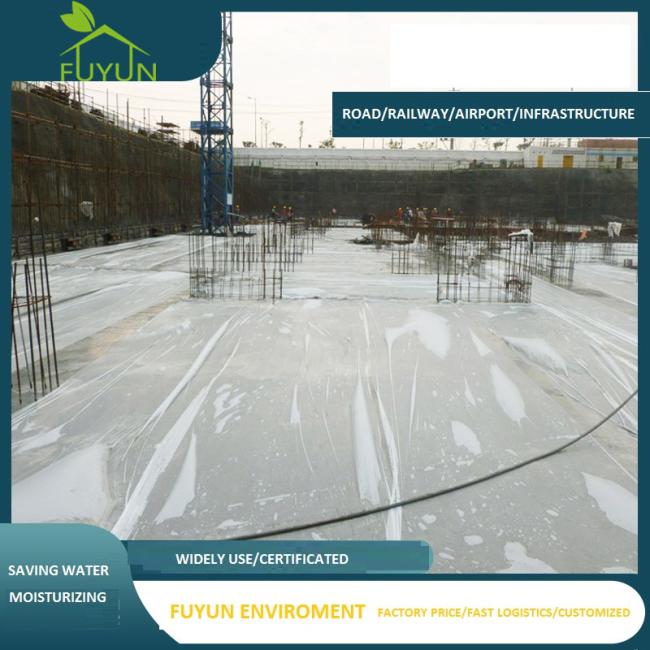

Transparent geomembrane is generally used for the site that has special requirement. Its function is same as black HDPE geomembrane.
It has excellent temperature adaptability, weldability, tolerance and aging resistance, chemical corrosion resistance, environmental stress cracking resistance and anti pierce performance. Therefore, it is especially suitable for underground engineering, mining engineering, sewage and waste residue treatment plant as impermeable materials.
Specification:
| Item | Properties | Unit | Thickness | |||||||
| 1 | Thickness | mm | 0.25 | 0.35 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 |
| 2 | Density≧ | g/m3 | 0.94 | |||||||
| 3 | Stretch Yield Strength (horiz & vet)≧ | N/mm | 3.75 | 5 | 7.5 | 11 | 15 | 18 | 22 | 29 |
| 4 | Stretch Break Strength (horiz & vet)≧ | N/mm | 6.75 | 13.5 | 19 | 20 | 27 | 33 | 40 | 53 |
| 5 | Yield Elongation (horiz & vet)≧ | % | 12 | |||||||
| 6 | Break elongation (horiz & vet)≧ | % | 700 | |||||||
| 7 | Angle Tear Strength (horiz & vet)≧ | N | 31.25 | 45 | 62.5 | 93 | 125 | 156 | 187 | 249 |
| 8 | Puncture Strength | N | 80 | 150 | 160 | 240 | 320 | 400 | 480 | 640 |
| 9 | Stress Crack Resistance | Hrs | 300 | |||||||
| 10 | Oxidation Induction Time(OIT) | Standard OIT | ≧ 100 min | |||||||
| High Pressure OIT | ≧ 400 min | |||||||||
| 11 | Thermal Aging at 85℃ | Standard OIT(min.ave.) retained after 90 days | 55% | |||||||
| High Pressure OIT(min.ave.) retained after 90 days | 80% | |||||||||
| 12 | UV Resistance | Standard OIT (min.ave.) | 50% | |||||||
| High Pressure OIT (min.ave.) retained after 1600 hrs | 50% | |||||||||
Application:
1. Dam liner
2. Pond liner
3. Waste landfill
4. Artificial lake liner
5. Storage reservoirs
6. Swimming pool liner
7. Waste water treatment
8. Underground water detect
9. Gas and oil plants in energy
10. Fish farm pond liner and agriculture projects
Advantage:
- Effective isolation of liquids and gases
- The flexibility of the material is suitable for landfill closure
- Anti leakage
- Moisture-proof
- Isolation
- Root resistance
- Anti puncture
- Resistance to environmental stress cracking
Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.

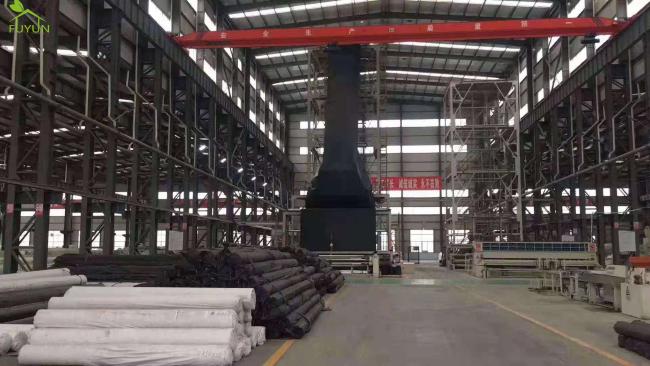

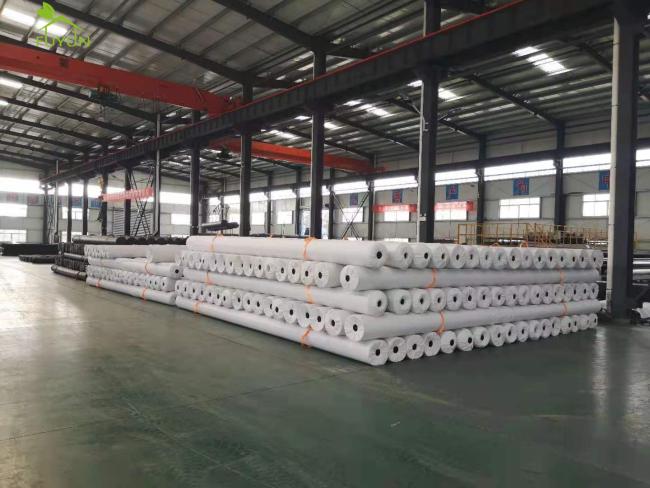

Factory Show:
Why Choose us?
FAQ:
