Fish Farm HDPE Smooth Geomembrane , Impervious Geotextile Weed Membrane
1.0mm HDPE Smooth Geomembrane, Impervious Geotextile Weed Membrane
Quick Detail:
- material: HDPE, LDPE, LLDPE
- length: 100m
- width: 6m
- thickness: 1.0mm
- function: seepage control, waterproof
- application: landfills, fish farm
Production Description:
Anti-seepage HDPE geomembrana is made from 97.5% high density polyethylene (HDPE) and 2.5% Carbon black/anti-aging agent/anti-oxygen/UV absorbent/stabilizer and other accessory, which is widely used for fishpond,solid waste containment and water containment environment and mining environment. Anti-seepage HDPE geomembrana is made of best quality high density polyethylene (HDPE) with specially formulated and original polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which contributes to its excellent resistance to UV radiation and being suitable for different conditions.
Our high density polyethylene (HDPE) geomembranes provide an impermeable barrier against a wide range of solids and liquids. They exhibit excellent chemical and UV resistance,impermeability, and high yield and welded seam strengths, which is widely used as the liner.(model according to the thickness of distinction, different thickness and different price) production capacity: thickness:0.1 mm -6 mm, width: 1-8 meters. It is suitable for seepage control in special industries, and is widely used for aquaculture, seepage control, reservoirs or sewage treatment ponds.
Specification:
general parameter:
| Thickness | 0.15-3.0mm & customer ' s requirement |
| Width | 1-8m & customer ' s requirement |
| Length | 50-200m & customer ' s requirement |
| Material | HDPE |
| Color | Black,White,Green,Blue & customer ' s requirement |
| Surface | Smooth |
| Package | Double layers woven bag, and add two strap & customer ' s requirement |
| Shipping Marks | support |
| Production Standard | GRI,ASTM,GB or other standard |
specific parameter:
| Item | Properties | Unit | Thickness | |||||||
| 1 | Thickness | mm | 0.25 | 0.35 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 |
| 2 | Density≧ | g/m3 | 0.94 | |||||||
| 3 | Stretch Yield Strength (horiz & vet)≧ | N/mm | 3.75 | 5 | 7.5 | 11 | 15 | 18 | 22 | 29 |
| 4 | Stretch Break Strength (horiz & vet)≧ | N/mm | 6.75 | 13.5 | 19 | 20 | 27 | 33 | 40 | 53 |
| 5 | Yield Elongation (horiz & vet)≧ | % | 12 | |||||||
| 6 | Break elongation (horiz & vet)≧ | % | 700 | |||||||
| 7 | Angle Tear Strength (horiz & vet)≧ | N | 31.25 | 45 | 62.5 | 93 | 125 | 156 | 187 | 249 |
| 8 | Puncture Strength | N | 80 | 150 | 160 | 240 | 320 | 400 | 480 | 640 |
| 9 | Stress Crack Resistance | Hrs | 300 | |||||||
| 10 | Carbon Black Content (range) | % | 2.0-3.0 | |||||||
| 11 | Carbon Black Dispersion | / | not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed | |||||||
| 12 | Oxidation Induction Time(OIT) | Standard OIT | ≧ 100 min | |||||||
| High Pressure OIT | ≧ 400 min | |||||||||
| 13 | Thermal Aging at 85℃ | Standard OIT(min.ave.) retained after 90 days | 55% | |||||||
| High Pressure OIT(min.ave.) retained after 90 days | 80% | |||||||||
| 14 | UV Resistance | Standard OIT (min.ave.) | 50% | |||||||
| High Pressure OIT (min.ave.) retained after 1600 hrs | 50% | |||||||||
Application:

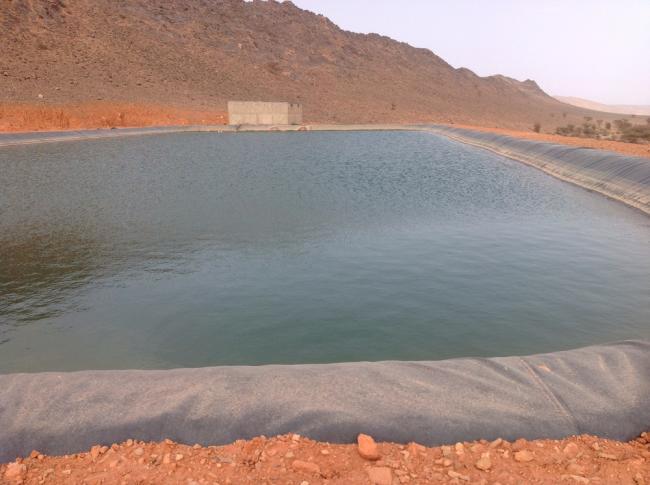

- Landscape Projects: Artificial lake, pond, the bottom of pond in Golf course, revetment etc;
- Sanitation Projects: Domestic garbage landfill, sewage treatment, poisonous & harmful substance treatment, dangerous cargo storage;
-
Water Conservancy Projects: Anti-seepage, leaking stoppage and reinforce of river/lake/basin/dam, anti-seepage of water channel, vertical core wall, lake etc;

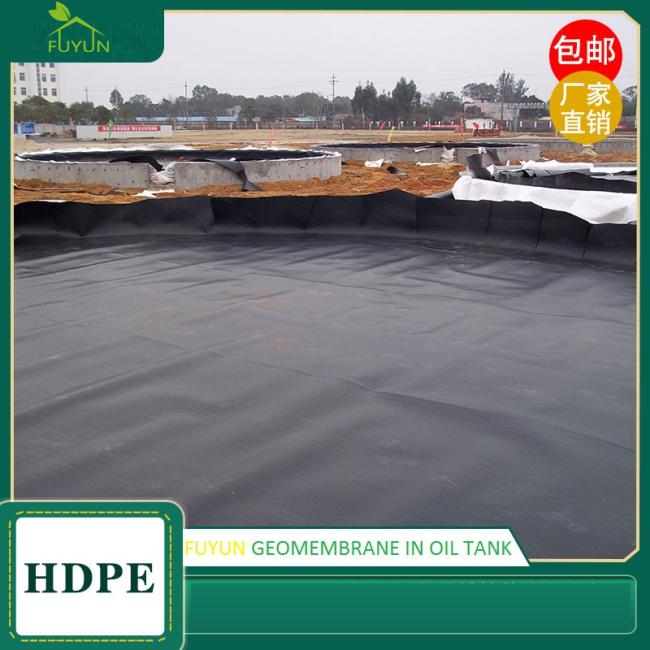

- Mining Industry & Chemical Industry: Anti-seepage of oil tank in chemical plant, refinery plant, petrol station, chemical reaction camera, inner liner of settling tank, secondary liner etc;
- Construction Projects: Underground project of subway and building, roof reservoir, roof garden, sewage pipeline etc;
-

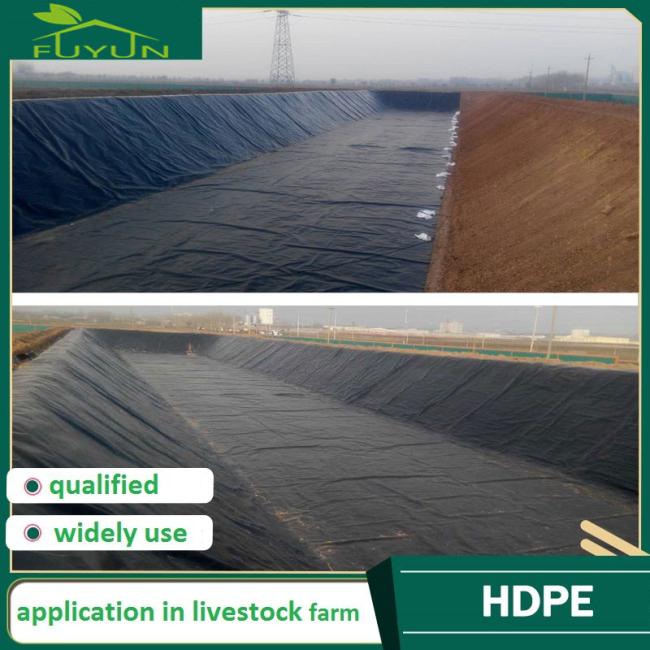

Aquaculture: Inner liner or fish pond, shrimp pond, revetment of sea cucumber pool etc;
-
Agriculture: Reservoir,drinking water pool, pool, irrigation system;
- Salt Industry: Salt filed crystallizing pond, brine pond, salt film etc.
Advantage:
1.Long service life
2.Puncture resistance
3.High temperature-resistant
4.Good mechanical properties
5.Ultraviolet resistance properties
6.Low cost and simple construction
7.High tear strength, deformation and adaptable

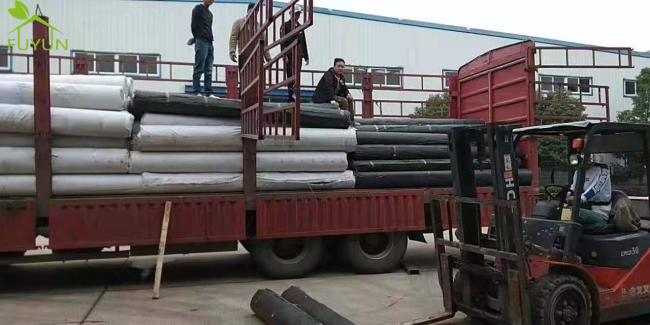

Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.

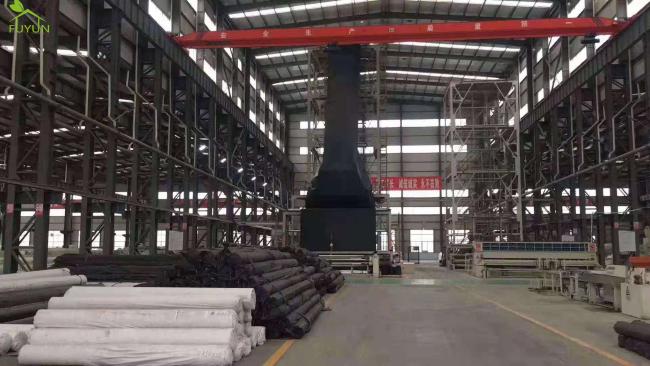

Factory Show:
Why Choose us?
FAQ:
