520mm Pe Film Printing Machine

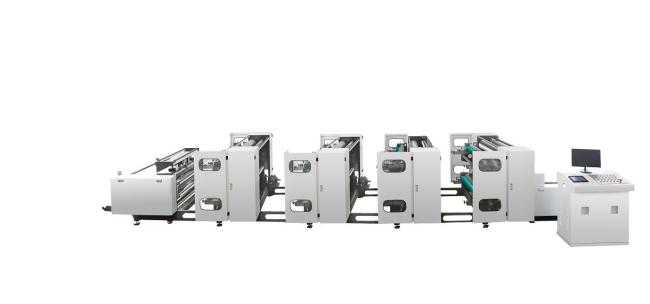

8 Color 520mm Full Color PE Film Roll Ptinting Press With Video Monitor
Features:
1,From the discharge to receiving a very short distance
2,Self-developed special scraper to make up for high-speed flying ink, reducing the solvent in the air of volatile
3,Repeated printing length 260-635MM, to fill the laminated flexo printing machine printing length is not enough blank
4,Using satellite rotary machine sets color, color chromatography precision, printing stability
5,Printing material:PVC:35 to 70μm
OPP:20 to 70μm
BOPP:20 to 60μm
PE:35 to 100μm
NY:20 to 50μm
PET:20 to 60μm
CPP:20 to 60μm
Paper:20 to 250 g/Other materials
6,Double wind knife drying system
7,1-8 color can be customized according to need
Whole process:1. Unwind,2. automatic constant tension 3. special scraper, 4. printing unit, 5. traction, 6. automatic constant
tension, 7. rewind
Main technical specification:
| Model | RTIN520-8H |
| Printing speed | 200m/minute |
| Printing color number | 8 color |
| Max width of paper | 520mm |
| Max printing wide | 520mm |
| Max unwinding diameter | 1000mm |
| Max rewinding diameter | 1000mm |
| Printing length | 175-635mm |
| Precision of overprint | ±0.1mm |
| Overall dimension | 10.0(L)×2.2(W)×1.5(H)m |
| Weight | about4200kg |
Optional parts:(can add as your request)
Printing unit number, up to 10 colors;turn bar device;Slitting setVideo monitorRotary die cutting setCold laminating
Material details:
| Printing material | paper,foil, PVC, |
| Printing ink | UV ink/water based ink |
| Printing plate thcikness | 1.7mm |
